ttl_driver::AbstractStepperDriver Class Referenceabstract

#include <abstract_stepper_driver.hpp>

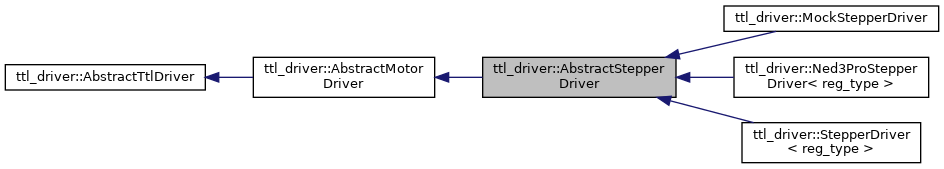

Inheritance diagram for ttl_driver::AbstractStepperDriver:
Inheritance graph
[legend]

Public Member Functions

 AbstractStepperDriver ()=default

 AbstractStepperDriver (std::shared_ptr< dynamixel::PortHandler > portHandler, std::shared_ptr< dynamixel::PacketHandler > packetHandler)
 AbstractStepperDriver::AbstractStepperDriver. More...

virtual int factoryCalibration (const uint8_t id, const uint32_t &command)
 AbstractStepperDriver::factoryCalibration. More...

std::string interpretErrorState (uint32_t hw_state) const override
 AbstractStepperDriver::interpretErrorState. More...

virtual common::model::EStepperCalibrationStatus interpretHomingData (uint8_t status) const
 AbstractStepperDriver::interpretHomingData. More...

int readConveyorVelocity (uint8_t id, int32_t &velocity, int32_t &direction)
 Returns the velocity of the conveyor in percentage. More...

virtual int readFirmwareRunning (uint8_t id, bool &is_running)=0

virtual int readHomingStatus (uint8_t id, uint8_t &status)=0

virtual int startHoming (uint8_t id)=0

std::string str () const override
 AbstractStepperDriver::str. More...

virtual int syncReadHomingAbsPosition (const std::vector< uint8_t > &id_list, std::vector< uint32_t > &abs_position)=0

virtual int syncReadHomingStatus (const std::vector< uint8_t > &id_list, std::vector< uint8_t > &status_list)=0

virtual int syncWriteHomingAbsPosition (const std::vector< uint8_t > &id_list, const std::vector< uint32_t > &abs_position)=0

virtual float velocityUnit () const =0
 writeVelocityGoal: define the unit of the velocity in RPM More...

virtual int writeHomingSetup (uint8_t id, uint8_t direction, uint8_t stall_threshold)=0

int writeSingleCmd (const std::unique_ptr< common::model::AbstractTtlSingleMotorCmd > &cmd) override
 AbstractStepperDriver::writeSingleCmd. More...

int writeSyncCmd (int type, const std::vector< uint8_t > &ids, const std::vector< uint32_t > &params) override
 AbstractStepperDriver::writeSyncCmd. More...

- Public Member Functions inherited from ttl_driver::AbstractMotorDriver
 AbstractMotorDriver ()=default

 AbstractMotorDriver (std::shared_ptr< dynamixel::PortHandler > portHandler, std::shared_ptr< dynamixel::PacketHandler > packetHandler)

virtual int changeId (uint8_t id, uint8_t new_id)=0

virtual int readControlMode (uint8_t id, uint8_t &mode)=0

virtual int readMaxPosition (uint8_t id, uint32_t &max_pos)=0

virtual int readMinPosition (uint8_t id, uint32_t &min_pos)=0

virtual int readPosition (uint8_t id, uint32_t &present_position)=0

virtual int readVelocity (uint8_t id, uint32_t &present_velocity)=0

virtual int readVelocityProfile (uint8_t id, std::vector< uint32_t > &data_list)=0

virtual int syncReadJointStatus (const std::vector< uint8_t > &id_list, std::vector< std::array< uint32_t, 2 > > &data_array_list)=0

virtual int syncReadPosition (const std::vector< uint8_t > &id_list, std::vector< uint32_t > &position_list)=0

virtual int syncReadVelocity (const std::vector< uint8_t > &id_list, std::vector< uint32_t > &velocity_list)=0

virtual int syncWritePositionGoal (const std::vector< uint8_t > &id_list, const std::vector< uint32_t > &position_list)=0

virtual int syncWriteTorquePercentage (const std::vector< uint8_t > &id_list, const std::vector< uint8_t > &torque_percentage_list)=0

virtual int syncWriteVelocityGoal (const std::vector< uint8_t > &id_list, const std::vector< uint32_t > &velocity_list)=0

virtual int writeControlMode (uint8_t id, uint8_t mode)=0

virtual int writePositionGoal (uint8_t id, uint32_t position)=0

virtual int writeTorquePercentage (uint8_t id, uint8_t torque_percentage)=0

virtual int writeVelocityGoal (uint8_t id, uint32_t velocity)=0

virtual int writeVelocityProfile (uint8_t id, const std::vector< uint32_t > &data_list)=0

- Public Member Functions inherited from ttl_driver::AbstractTtlDriver
 AbstractTtlDriver ()=default

 AbstractTtlDriver (std::shared_ptr< dynamixel::PortHandler > portHandler, std::shared_ptr< dynamixel::PacketHandler > packetHandler)
 AbstractTtlDriver::AbstractTtlDriver. More...

virtual int checkModelNumber (uint8_t id)=0

virtual int getModelNumber (uint8_t id, uint16_t &model_number)
 AbstractTtlDriver::getModelNumber. More...

virtual int ping (uint8_t id)
 AbstractTtlDriver::ping. More...

virtual int readCustom (uint16_t address, uint8_t data_len, uint8_t id, uint32_t &data)
 AbstractTtlDriver::readCustom. More...

virtual int readFirmwareVersion (uint8_t id, std::string &version)=0

virtual int readHwErrorStatus (uint8_t id, uint8_t &hardware_error_status)=0

virtual int readTemperature (uint8_t id, uint8_t &temperature)=0

virtual int readVoltage (uint8_t id, double &voltage)=0

virtual int reboot (uint8_t id)
 AbstractTtlDriver::reboot. More...

virtual int scan (std::vector< uint8_t > &id_list)
 AbstractTtlDriver::scan. More...

virtual int syncReadFirmwareVersion (const std::vector< uint8_t > &id_list, std::vector< std::string > &firmware_version)=0

virtual int syncReadHwErrorStatus (const std::vector< uint8_t > &id_list, std::vector< uint8_t > &hw_error_list)=0

virtual int syncReadHwStatus (const std::vector< uint8_t > &id_list, std::vector< std::pair< double, uint8_t > > &data_array_list)=0

virtual int syncReadRawVoltage (const std::vector< uint8_t > &id_list, std::vector< double > &voltage_list)=0

virtual int syncReadTemperature (const std::vector< uint8_t > &id_list, std::vector< uint8_t > &temperature_list)=0

virtual int syncReadVoltage (const std::vector< uint8_t > &id_list, std::vector< double > &voltage_list)=0

virtual int writeCustom (uint16_t address, uint8_t data_len, uint8_t id, uint32_t data)
 AbstractTtlDriver::writeCustom. More...

virtual ~AbstractTtlDriver ()=default


Protected Member Functions

std::string interpretFirmwareVersion (uint32_t fw_version) const override
 AbstractStepperDriver::interpretFirmwareVersion. More...

- Protected Member Functions inherited from ttl_driver::AbstractTtlDriver
 AbstractTtlDriver (AbstractTtlDriver &&)=default

 AbstractTtlDriver (const AbstractTtlDriver &)=default

AbstractTtlDriver & operator= (AbstractTtlDriver &&)=default

AbstractTtlDriver & operator= (const AbstractTtlDriver &)=default

template<typename T >
int read (uint16_t address, uint8_t id, T &data)
 AbstractTtlDriver::read. More...

template<typename T >
int syncRead (uint16_t address, const std::vector< uint8_t > &id_list, std::vector< T > &data_list)
 AbstractTtlDriver::syncRead. More...

template<typename T , const size_t N>
int syncReadConsecutiveBytes (uint16_t address, const std::vector< uint8_t > &id_list, std::vector< std::array< T, N > > &data_list)
 AbstractTtlDriver::syncReadConsecutiveBytes. More...

template<typename T >
int syncWrite (uint16_t address, const std::vector< uint8_t > &id_list, const std::vector< T > &data_list)

template<typename T >
int write (uint16_t address, uint8_t id, T data)


Additional Inherited Members

- Static Protected Attributes inherited from ttl_driver::AbstractTtlDriver
static constexpr int PING_WRONG_MODEL_NUMBER = 30


Detailed Description

Definition at line 34 of file abstract_stepper_driver.hpp.

Constructor & Destructor Documentation

◆ AbstractStepperDriver() [1/2]

ttl_driver::AbstractStepperDriver::AbstractStepperDriver ( )
default

◆ AbstractStepperDriver() [2/2]

ttl_driver::AbstractStepperDriver::AbstractStepperDriver ( std::shared_ptr< dynamixel::PortHandler >  portHandler,
std::shared_ptr< dynamixel::PacketHandler >  packetHandler
)

AbstractStepperDriver::AbstractStepperDriver.

Definition at line 39 of file abstract_stepper_driver.cpp.

Member Function Documentation

◆ factoryCalibration()

int ttl_driver::AbstractStepperDriver::factoryCalibration ( const uint8_t  id,
const uint32_t &  command
)
virtual

AbstractStepperDriver::factoryCalibration.

Parameters
id
Returns

Reimplemented in ttl_driver::Ned3ProStepperDriver< reg_type >.

Definition at line 244 of file abstract_stepper_driver.cpp.

◆ interpretErrorState()

std::string ttl_driver::AbstractStepperDriver::interpretErrorState ( uint32_t  hw_state) const
overridevirtual

AbstractStepperDriver::interpretErrorState.

Parameters
hw_state
Returns

Implements ttl_driver::AbstractTtlDriver.

Definition at line 175 of file abstract_stepper_driver.cpp.

◆ interpretFirmwareVersion()

std::string ttl_driver::AbstractStepperDriver::interpretFirmwareVersion ( uint32_t  fw_version) const
overrideprotectedvirtual

AbstractStepperDriver::interpretFirmwareVersion.

Parameters
fw_version
Returns

Implements ttl_driver::AbstractTtlDriver.

Definition at line 157 of file abstract_stepper_driver.cpp.

◆ interpretHomingData()

common::model::EStepperCalibrationStatus ttl_driver::AbstractStepperDriver::interpretHomingData ( uint8_t  status) const
virtual

AbstractStepperDriver::interpretHomingData.

Parameters
status
Returns

Reimplemented in ttl_driver::Ned3ProStepperDriver< reg_type >.

Definition at line 213 of file abstract_stepper_driver.cpp.

◆ readConveyorVelocity()

int ttl_driver::AbstractStepperDriver::readConveyorVelocity ( uint8_t  id,
int32_t &  velocity,
int32_t &  direction
)

Returns the velocity of the conveyor in percentage.

Definition at line 254 of file abstract_stepper_driver.cpp.

◆ readFirmwareRunning()

virtual int ttl_driver::AbstractStepperDriver::readFirmwareRunning ( uint8_t  id,
bool &  is_running
)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ readHomingStatus()

virtual int ttl_driver::AbstractStepperDriver::readHomingStatus ( uint8_t  id,
uint8_t &  status
)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ startHoming()

virtual int ttl_driver::AbstractStepperDriver::startHoming ( uint8_t  id)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ str()

std::string ttl_driver::AbstractStepperDriver::str ( ) const
overridevirtual

AbstractStepperDriver::str.

Returns

Reimplemented from ttl_driver::AbstractMotorDriver.

Reimplemented in ttl_driver::Ned3ProStepperDriver< reg_type >, ttl_driver::StepperDriver< reg_type >, and ttl_driver::MockStepperDriver.

Definition at line 48 of file abstract_stepper_driver.cpp.

◆ syncReadHomingAbsPosition()

virtual int ttl_driver::AbstractStepperDriver::syncReadHomingAbsPosition ( const std::vector< uint8_t > &  id_list,
std::vector< uint32_t > &  abs_position
)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ syncReadHomingStatus()

virtual int ttl_driver::AbstractStepperDriver::syncReadHomingStatus ( const std::vector< uint8_t > &  id_list,
std::vector< uint8_t > &  status_list
)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ syncWriteHomingAbsPosition()

virtual int ttl_driver::AbstractStepperDriver::syncWriteHomingAbsPosition ( const std::vector< uint8_t > &  id_list,
const std::vector< uint32_t > &  abs_position
)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ velocityUnit()

virtual float ttl_driver::AbstractStepperDriver::velocityUnit ( ) const
pure virtual

writeVelocityGoal: define the unit of the velocity in RPM

Implemented in ttl_driver::Ned3ProStepperDriver< reg_type >, ttl_driver::MockStepperDriver, and ttl_driver::StepperDriver< reg_type >.

◆ writeHomingSetup()

virtual int ttl_driver::AbstractStepperDriver::writeHomingSetup ( uint8_t  id,
uint8_t  direction,
uint8_t  stall_threshold
)
pure virtual

Implemented in ttl_driver::MockStepperDriver, ttl_driver::StepperDriver< reg_type >, and ttl_driver::Ned3ProStepperDriver< reg_type >.

◆ writeSingleCmd()

int ttl_driver::AbstractStepperDriver::writeSingleCmd ( const std::unique_ptr< common::model::AbstractTtlSingleMotorCmd > &  cmd)
overridevirtual

AbstractStepperDriver::writeSingleCmd.

Parameters
cmd

Implements ttl_driver::AbstractTtlDriver.

Definition at line 54 of file abstract_stepper_driver.cpp.

◆ writeSyncCmd()

int ttl_driver::AbstractStepperDriver::writeSyncCmd ( int  type,
const std::vector< uint8_t > &  ids,
const std::vector< uint32_t > &  params
)
overridevirtual

AbstractStepperDriver::writeSyncCmd.

Parameters
type
ids
params

Implements ttl_driver::AbstractTtlDriver.

Definition at line 111 of file abstract_stepper_driver.cpp.

The documentation for this class was generated from the following files:
